The NEW 3M™ SPEEDGLAS™ 9100 Welding Shields

3M™ SPEEDGLAS™ 9100 Welding Shields are available with 3M™ Adflo™ Powered Air Respirator or stand alone.

3m 9100 welding shield range

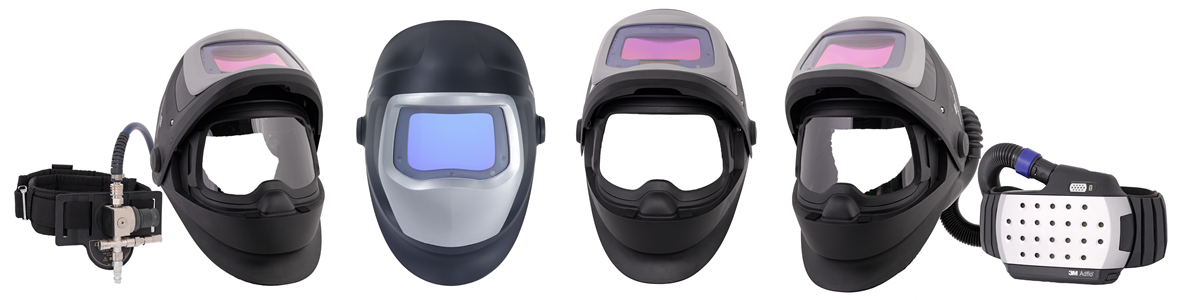

3M™ SPEEDGLAS™ 9100 Welding Shield Range

3m range

Download the 3M Directory →

directory

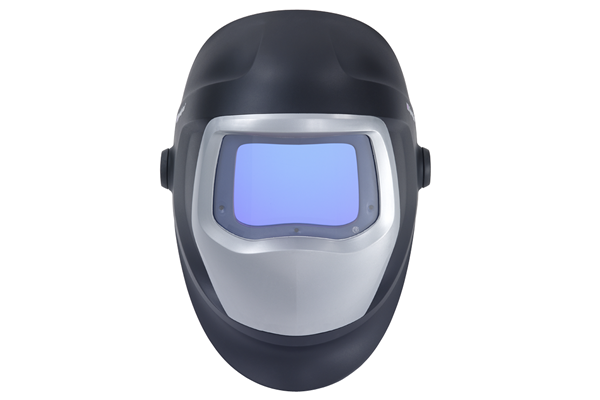

3M™ Speedglas™ 9100 Series Welding Shields

The 3M™ Speedglas™ 9100 Series Welding Shields are available with either with an auto-darkening filter (ADF) in a fixed position or an ADF in a flip-up!

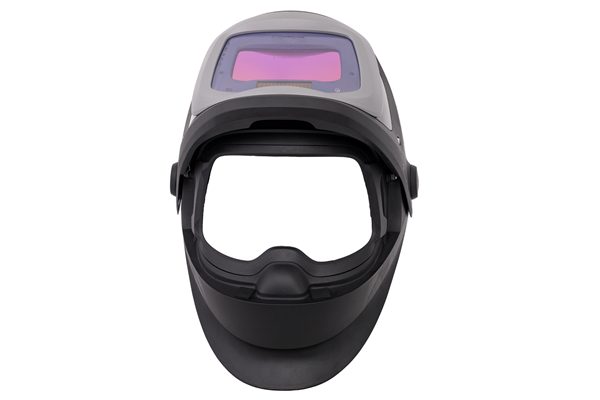

The 3M™ Speedglas™ 9100FX Series Welding Shields feature a flip-up combination of an auto-darkening welding shield and a protective visor.

Not only is the viewing area of the visor larger than on previous models – 17 x 10cm – the geometry of the shield has also been redesigned to increase peripheral vision.

Key Benefits

  • More Coverage: We’ve made the shield deeper and wider providing greater coverage of the ears, neck and sides of the head.
  • More Comfort: Professional welders marvel at the stability and balance of the shield as a result of its lower pivot point. The head suspension also cradles your head better, giving a secure fit without the need to tighten the headband as much as you would on a conventional shield.
  • More Control: Welders will be pleased to see all of the filter options: Increased versatility, greater optical control…and high levels of user satisfaction.
3m 9100 air adflo

3M Speedglas 9100 Series with 3M™ Adflo™

How to order

Come to our trade counter in Bedminster (map), or phone for advice or check, prices and stock.

Telephone 0117 923 1233
Email Address info@britishwelding.com

9100 welding shield

566605 9100 V Air Welding Shield and Adflo

3M™ Speedglas™ Adflo

The Speedglas™ Adflo (HE) 9100-Air combines the Speedglas™ 9100 welding helmet and 9100V ADF with the proven Adflo PAPR (Powered Air Purifying Respirator) and lithium-ion battery to create a safe, personal welding environment with superior auto-darkening filter clarity.

Adflo Features

  • Front of face air delivery helps provide cooling for hot work environments
  • Adjustable breathing tube at back of helmet is made of flexible tubing so it does not stick out rigidly and lets users work in tight spaces or when lying on their back
  • Breathing tube is attached to the headband instead of the helmet so there is less pulling on the helmet from the breathing tube
  • Shade 5 SideWindows provide peripheral vision for increased safety when the welding shield is in place optional covers are available to block the SideWindows for times when other welder’s are nearby
  • Extended helmet coverage helps to protect from harmful UV rays that can contribute to skin cancer.

Adflo Specs

  • Standard High Efficiency (HE) particulate filter protects against the following exposures:
  • General Dust
  • Hexavalent Chromium metal fume
  • Steel/Manganese Alloys fume
  • Stainless Steel fume
  • Aluminum fume
  • Glavanized Steel fume
  • Cadmium fume
  • Lead fume
  • Optional Adflo OV/SD/CL/HC vapor cartridge protects against:
  • Organic vapor
  • Sulfur Dixoide vapor
  • Chlorine vapor
  • Hydrogen Chloride vapor
  • Exclusive “stackable” configuration adapts to changing welding applications.
  • Improved Lithium-ion battery holds a charge for up to 12 hours of use
  • Smart Charger won’t ever overcharge battery.
  • System Intelligence: Constant Airflow Rate regardless of battery charge and filter loading. Audible and visual alarms signal low airflow and low battery charge.
  • The unique belt design has a solid leather front cut narrow to allow the welder to bend forward easily. Along the welder’s sides the leather becomes wider with large ventilation holes for maximum breathability. The turbo unit securely attaches to and is nestled between the two plastic arms of the belt so the turbo’s weight is evenly distributed across the entire lower back and upper hips. The plastic arms are vertically rigid but with pleats so the welder can move and turn with freedom.
  • Exclusive airflow pattern means perfectly-distributed air throughout the entire breathing zone of the helmet.

3M™ Speedglas™ 9100 Helmet

Viewing area:
6.66in² / 41.85cm²
(1.8 x 3.7in / 45mm x 93mm)

The comfort of the Speedglas™ 9100V welding helmet is the result of extensive research and development processes. We consulted with international experts in ergonomics and anatomy to ensure that we would produce the most comfortable and protective welding helmet ever.

Welders are delighted to see all the filter options: A grinding shade 3. Gas welding shade 5. Micro-plasma welding shade 8. Arc welding shades 9 through 13. Sensitivity settings for normal welding to low-amp inverter TIG welding, and even lowsensitivity setting for when other welders are working nearby. More versatility, greater optimization… and more user satisfaction.

Speedglas™ 9100 Helmet Features

  • The helmet is made from a lightweight
  • Heat reflecting silver front.
  • Increased coverage for lower neck from heat and welding sparks.
  • Increased coverage for ear and side of neck.
  • SideWindows: Exclusive patented shade 5 filters that widen your field of vision. SideWindows enable you to be more aware of nearby moving machinery and tools and other peripheral hazards. Welders can also use removable cover plates for when peripheral vision would be distracting.

Speedglas™ 9100V Auto Dark Lens Features

  • Viewing area 6.66 sq in.
  • Magnification made easy. The new magnifying lens holder
  • Seven user selectable dark shades: shade 5 for gas welding/cutting
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds the welding filter switches to the normal light state (shade 3). The comfort mode may help reduce eye fatigue resulting from the eye constantly needing to adjust to differing light levels during tack welding.
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes and amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities or one of the dark shades–to have it function as a passive welding filter.

566615 9100 X Air Welding Shield and Adflo

3M™ Speedglas™ Adflo

The Speedglas™ Adflo (HE) 9100-Air combines the Speedglas™ 9100 welding helmet and 9100X ADF with the proven Adflo PAPR (Powered Air Purifying Respirator) and lithium-ion battery to create a safe, personal welding environment with superior auto-darkening filter clarity.

Adflo Features

  • Front of face air delivery helps provide cooling for hot work environments
  • Adjustable breathing tube at back of helmet is made of flexible tubing so it does not stick out rigidly and lets users work in tight spaces or when lying on their back
  • Breathing tube is attached to the headband instead of the helmet so there is less pulling on the helmet from the breathing tube
  • Shade 5 SideWindows provide peripheral vision for increased safety when the welding shield is in place optional covers are available to block the SideWindows for times when other welder’s are nearby
  • Extended helmet coverage helps to protect from harmful UV rays that can contribute to skin cancer.

Adflo Specs

  • Standard High Efficiency (HE) particulate filter protects against the following exposures:
  • General Dust
  • Hexavalent Chromium metal fume
  • Steel/Manganese Alloys fume
  • Stainless Steel fume
  • Aluminum fume
  • Glavanized Steel fume
  • Cadmium fume
  • Lead fume
  • Optional Adflo OV/SD/CL/HC vapor cartridge protects against:
  • Organic vapor
  • Sulfur Dixoide vapor
  • Chlorine vapor
  • Hydrogen Chloride vapor
  • Exclusive “stackable” configuration adapts to changing welding applications.
  • Improved Lithium-ion battery holds a charge for up to 12 hours of use
  • Smart Charger won’t ever overcharge battery.
  • System Intelligence: Constant Airflow Rate regardless of battery charge and filter loading. Audible and visual alarms signal low airflow and low battery charge.
  • The unique belt design has a solid leather front cut narrow to allow the welder to bend forward easily. Along the welder’s sides the leather becomes wider with large ventilation holes for maximum breathability. The turbo unit securely attaches to and is nestled between the two plastic arms of the belt so the turbo’s weight is evenly distributed across the entire lower back and upper hips. The plastic arms are vertically rigid but with pleats so the welder can move and turn with freedom.
  • Exclusive airflow pattern means perfectly-distributed air throughout the entire breathing zone of the helmet.

3M™ Speedglas™ 9100 Helmet

Viewing area:
8.82in² / 57.78cm²
(2.1 x 4.2in / 54mm x 107mm)

The comfort of the Speedglas™ 9100X welding helmet is the result of extensive research and development processes. We consulted with international experts in ergonomics and anatomy to ensure that we would produce the most comfortable and protective welding helmet ever.

Welders are delighted to see all the filter options: A grinding shade 3. Gas welding shade 5. Micro-plasma welding shade 8. Arc welding shades 9 through 13. Sensitivity settings for normal welding to low-amp inverter TIG welding, and even lowsensitivity setting for when other welders are working nearby. More versatility, greater optimization… and more user satisfaction.

Speedglas™ 9100X Helmet Features

  • The helmet is made from a lightweight
  • Heat reflecting silver front.
  • Increased coverage for lower neck from heat and welding sparks.
  • Increased coverage for ear and side of neck.
  • SideWindows: Exclusive patented shade 5 filters that widen your field of vision. SideWindows enable you to be more aware of nearby moving machinery and tools and other peripheral hazards. Welders can also use removable cover plates for when peripheral vision would be distracting.

Speedglas™ 9100X Auto Dark Lens Features

  • Viewing area 9.12 sq in.
  • Magnification made easy. The new magnifying lens holder
  • Seven user selectable dark shades: shade 5 for gas welding/cutting
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds the welding filter switches to the normal light state (shade 3). The comfort mode may help reduce eye fatigue resulting from the eye constantly needing to adjust to differing light levels during tack welding.
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes and amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities or one of the dark shades–to have it function as a passive welding filter.

566625 9100 XX Air Welding Shield and Adflo

3M™ Speedglas™ Adflo

The Speedglas™ Adflo (HE) 9100-Air combines the Speedglas™ 9100 welding helmet and 9100XX ADF with the proven Adflo PAPR (Powered Air Purifying Respirator) and lithium-ion battery to create a safe, personal welding environment with superior auto-darkening filter clarity.

Adflo Features

  • Front of face air delivery helps provide cooling for hot work environments
  • Adjustable breathing tube at back of helmet is made of flexible tubing so it does not stick out rigidly and lets users work in tight spaces or when lying on their back
  • Breathing tube is attached to the headband instead of the helmet so there is less pulling on the helmet from the breathing tube
  • Shade 5 SideWindows provide peripheral vision for increased safety when the welding shield is in place optional covers are available to block the SideWindows for times when other welder’s are nearby
  • Extended helmet coverage helps to protect from harmful UV rays that can contribute to skin cancer.

Adflo Specs

  • Standard High Efficiency (HE) particulate filter protects against the following exposures:
  • General Dust
  • Hexavalent Chromium metal fume
  • Steel/Manganese Alloys fume
  • Stainless Steel fume
  • Aluminum fume
  • Glavanized Steel fume
  • Cadmium fume
  • Lead fume
  • Optional Adflo OV/SD/CL/HC vapor cartridge protects against:
  • Organic vapor
  • Sulfur Dixoide vapor
  • Chlorine vapor
  • Hydrogen Chloride vapor
  • Exclusive “stackable” configuration adapts to changing welding applications.
  • Improved Lithium-ion battery holds a charge for up to 12 hours of use
  • Smart Charger won’t ever overcharge battery.
  • System Intelligence: Constant Airflow Rate regardless of battery charge and filter loading. Audible and visual alarms signal low airflow and low battery charge.
  • The unique belt design has a solid leather front cut narrow to allow the welder to bend forward easily. Along the welder’s sides the leather becomes wider with large ventilation holes for maximum breathability. The turbo unit securely attaches to and is nestled between the two plastic arms of the belt so the turbo’s weight is evenly distributed across the entire lower back and upper hips. The plastic arms are vertically rigid but with pleats so the welder can move and turn with freedom.
  • Exclusive airflow pattern means perfectly-distributed air throughout the entire breathing zone of the helmet.

3M™ Speedglas™ 9100 Helmet

Viewing area:
11.76in² / 77.04cm² (2.8 x 4.2in / 72mm x 107mm)

The comfort of the Speedglas™ 9100XX welding helmet is the result of extensive research and development processes. We consulted with international experts in ergonomics and anatomy to ensure that we would produce the most comfortable and protective welding helmet ever.

Welders are delighted to see all the filter options: A grinding shade 3. Gas welding shade 5. Micro-plasma welding shade 8. Arc welding shades 9 through 13. Sensitivity settings for normal welding to low-amp inverter TIG welding, and even lowsensitivity setting for when other welders are working nearby. More versatility, greater optimization… and more user satisfaction.

Speedglas™ 9100XX Helmet Features

  • The helmet is made from a lightweight
  • Heat reflecting silver front.
  • Increased coverage for lower neck from heat and welding sparks.
  • Increased coverage for ear and side of neck.
  • SideWindows: Exclusive patented shade 5 filters that widen your field of vision. SideWindows enable you to be more aware of nearby moving machinery and tools and other peripheral hazards. Welders can also use removable cover plates for when peripheral vision would be distracting.

Speedglas™ 9100XX Auto Dark Lens Features

  • Viewing area 12.11 sq in
  • Magnification made easy. The new magnifying lens holder
  • Seven user selectable dark shades: shade 5 for gas welding/cutting
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds the welding filter switches to the normal light state (shade 3). The comfort mode may help reduce eye fatigue resulting from the eye constantly needing to adjust to differing light levels during tack welding.
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes and amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities or one of the dark shades–to have it function as a passive welding filter.
9100 welding shield

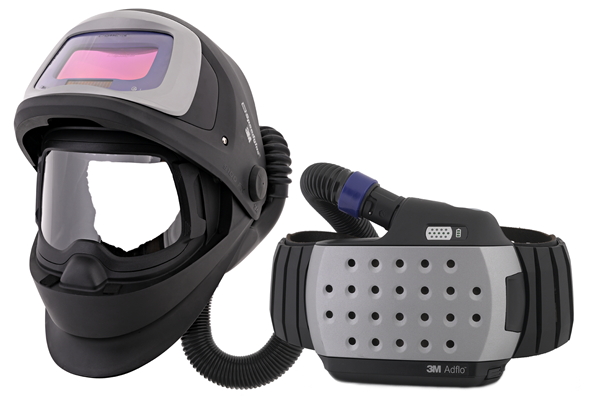

3M Speedglas 9100FX Series with 3M™ Adflo™

How to order

Come to our trade counter in Bedminster (map), or phone for advice or check, prices and stock.

Telephone 0117 923 1233
Email Address info@britishwelding.com

9100 welding shield

546605 9100FX V Welding Shield

3M™ Speedglas™ Adflo

The Speedglas™ Adflo (HE) 9100-Air combines the Speedglas™ 9100FX welding helmet and 9100V ADF with the proven Adflo PAPR (Powered Air Purifying Respirator) and lithium-ion battery to create a safe, personal welding environment with superior auto-darkening filter clarity.

Adflo Features

  • Front of face air delivery helps provide cooling for hot work environments
  • Adjustable breathing tube at back of helmet is made of flexible tubing so it does not stick out rigidly and lets users work in tight spaces or when lying on their back
  • Breathing tube is attached to the headband instead of the helmet so there is less pulling on the helmet from the breathing tube
  • Shade 5 SideWindows provide peripheral vision for increased safety when the welding shield is in place optional covers are available to block the SideWindows for times when other welder’s are nearby
  • Extended helmet coverage helps to protect from harmful UV rays that can contribute to skin cancer.

Adflo Specs

  • Standard High Efficiency (HE) particulate filter protects against the following exposures:
  • General Dust
  • Hexavalent Chromium metal fume
  • Steel/Manganese Alloys fume
  • Stainless Steel fume
  • Aluminum fume
  • Glavanized Steel fume
  • Cadmium fume
  • Lead fume
  • Optional Adflo OV/SD/CL/HC vapor cartridge protects against:
  • Organic vapor
  • Sulfur Dixoide vapor
  • Chlorine vapor
  • Hydrogen Chloride vapor
  • Exclusive “stackable” configuration adapts to changing welding applications.
  • Improved Lithium-ion battery holds a charge for up to 12 hours of use
  • Smart Charger won’t ever overcharge battery.
  • System Intelligence: Constant Airflow Rate regardless of battery charge and filter loading. Audible and visual alarms signal low airflow and low battery charge.
  • The unique belt design has a solid leather front cut narrow to allow the welder to bend forward easily. Along the welder’s sides the leather becomes wider with large ventilation holes for maximum breathability. The turbo unit securely attaches to and is nestled between the two plastic arms of the belt so the turbo’s weight is evenly distributed across the entire lower back and upper hips. The plastic arms are vertically rigid but with pleats so the welder can move and turn with freedom.
  • Exclusive airflow pattern means perfectly-distributed air throughout the entire breathing zone of the helmet.

3M™ Speedglas™ 9100FX Helmet

Viewing area:
6.66in² / 41.85cm²
(1.8 x 3.7in / 45mm x 93mm)

The new 9100 FX welding helmet with 9100V auto-darkening lens combines legendary Speedglas™ quality and auto darkening technology with an innovative wide-view grinding visor to give welders an all-in-one solution for more flexibilty, precision, and efficiency. The exceptionally clear, wide grinding visor offers a greater field of view in all directions, while a smooth flip-up pivot mechanism assures effortless transition from welding to grinding modes.

New front air exhaust vents help reduce fogging, and highly adjustable suspension and well-balanced design enhance the well-known Speedglas top performance and comfort qualities.

Speedglas™ 9100V FX Helmet Features

  • Exceptionally large 8" x 4.25" protective visor with 105 degree of viewing angle significantly increases user’s field of view in all directions.
  • Smooth flip-up pivot mechanism allows for effortless one-handed use and quick transition between welding and grinding modes.
  • SideWindows with exclusive Shade 5 filters allow you to see others working around you.
  • Front and side air exhaust vents help minimize fogging and enhance comfort particularly during extended use.
  • Includes spark deflector. Also optional flame-resistant extended ear and neck protection accessory is available for added protection from welding hazards.
  • Compatible with all 3M™ Speedglas™ 9100 Auto Darkening Filters (ADF).
  • Compatible with most 3M disposable respirators and select 3M reusable respirators.

Speedglas™ 9100V FX Auto Dark Lens Features

  • Viewing area 6.05 sq in.
  • Magnification made easy. The new magnifying lens holder
  • Seven user selectable dark shades: shade 5 for gas welding/cutting
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes and amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities or one of the dark shades–to have it function as a passive welding filter.

546615 9100FX X Welding Shield

3M™ Speedglas™ Adflo

The Speedglas™ Adflo (HE) 9100-Air combines the Speedglas™ 9100FX welding helmet and 9100X ADF with the proven Adflo PAPR (Powered Air Purifying Respirator) and lithium-ion battery to create a safe, personal welding environment with superior auto-darkening filter clarity.

Adflo Features

  • Front of face air delivery helps provide cooling for hot work environments
  • Adjustable breathing tube at back of helmet is made of flexible tubing so it does not stick out rigidly and lets users work in tight spaces or when lying on their back
  • Breathing tube is attached to the headband instead of the helmet so there is less pulling on the helmet from the breathing tube
  • Shade 5 SideWindows provide peripheral vision for increased safety when the welding shield is in place optional covers are available to block the SideWindows for times when other welder’s are nearby
  • Extended helmet coverage helps to protect from harmful UV rays that can contribute to skin cancer.

Adflo Specs

  • Standard High Efficiency (HE) particulate filter protects against the following exposures:
  • General Dust
  • Hexavalent Chromium metal fume
  • Steel/Manganese Alloys fume
  • Stainless Steel fume
  • Aluminum fume
  • Glavanized Steel fume
  • Cadmium fume
  • Lead fume
  • Optional Adflo OV/SD/CL/HC vapor cartridge protects against:
  • Organic vapor
  • Sulfur Dixoide vapor
  • Chlorine vapor
  • Hydrogen Chloride vapor
  • Exclusive “stackable” configuration adapts to changing welding applications.
  • Improved Lithium-ion battery holds a charge for up to 12 hours of use
  • Smart Charger won’t ever overcharge battery.
  • System Intelligence: Constant Airflow Rate regardless of battery charge and filter loading. Audible and visual alarms signal low airflow and low battery charge.
  • The unique belt design has a solid leather front cut narrow to allow the welder to bend forward easily. Along the welder’s sides the leather becomes wider with large ventilation holes for maximum breathability. The turbo unit securely attaches to and is nestled between the two plastic arms of the belt so the turbo’s weight is evenly distributed across the entire lower back and upper hips. The plastic arms are vertically rigid but with pleats so the welder can move and turn with freedom.
  • Exclusive airflow pattern means perfectly-distributed air throughout the entire breathing zone of the helmet.

3M™ Speedglas™ 9100FX Helmet

Viewing area:
8.82in² / 57.78cm²
(2.1 x 4.2in / 54mm x 107mm)

The new 9100X FX welding helmet with 9100X auto-darkening lens combines legendary Speedglas™ quality and auto darkening technology with an innovative wide-view grinding visor to give welders an all-in-one solution for more flexibilty, precision, and efficiency. The exceptionally clear, wide grinding visor offers a greater field of view in all directions, while a smooth flip-up pivot mechanism assures effortless transition from welding to grinding modes.

New front air exhaust vents help reduce fogging, and highly adjustable suspension and well-balanced design enhance the well-known Speedglas top performance and comfort qualities.

Speedglas™ 9100FX X Helmet Features

  • Exceptionally large 8" x 4.25" protective visor with 105 degree of viewing angle significantly increases user’s field of view in all directions.
  • Smooth flip-up pivot mechanism allows for effortless one-handed use and quick transition between welding and grinding modes.
  • SideWindows with exclusive Shade 5 filters allow you to see others working around you.
  • Front and side air exhaust vents help minimize fogging and enhance comfort
  • Includes spark deflector. Also
  • Compatible with all 3M™ Speedglas™ 9100 Auto Darkening Filters (ADF).
  • Compatible with most 3M disposable respirators and select 3M reusable respirators.

Speedglas™ 9100FX X Auto Dark Lens Features

  • Viewing area 9.12 sq in.
  • Magnification made easy. The new magnifying lens holder on the inside face of the welding helmet makes lens installation easier and more adjustable.
  • Seven user selectable dark shades: shade 5 for gas welding/cutting
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities or one of the dark shades–to have it function as a passive welding filter.

546625 9100FX XX Welding Shield

3M™ Speedglas™ Adflo

The Speedglas™ Adflo (HE) 9100-Air combines the Speedglas™ 9100FX welding helmet and 9100XX ADF with the proven Adflo PAPR (Powered Air Purifying Respirator) and lithium-ion battery to create a safe, personal welding environment with superior auto-darkening filter clarity.

Adflo Features

  • Front of face air delivery helps provide cooling for hot work environments
  • Adjustable breathing tube at back of helmet is made of flexible tubing so it does not stick out rigidly and lets users work in tight spaces or when lying on their back
  • Breathing tube is attached to the headband instead of the helmet so there is less pulling on the helmet from the breathing tube
  • Shade 5 SideWindows provide peripheral vision for increased safety when the welding shield is in place optional covers are available to block the SideWindows for times when other welder’s are nearby
  • Extended helmet coverage helps to protect from harmful UV rays that can contribute to skin cancer.

Adflo Specs

  • Standard High Efficiency (HE) particulate filter protects against the following exposures:
  • General Dust
  • Hexavalent Chromium metal fume
  • Steel/Manganese Alloys fume
  • Stainless Steel fume
  • Aluminum fume
  • Glavanized Steel fume
  • Cadmium fume
  • Lead fume
  • Optional Adflo OV/SD/CL/HC vapor cartridge protects against:
  • Organic vapor
  • Sulfur Dixoide vapor
  • Chlorine vapor
  • Hydrogen Chloride vapor
  • Exclusive “stackable” configuration adapts to changing welding applications.
  • Improved Lithium-ion battery holds a charge for up to 12 hours of use
  • Smart Charger won’t ever overcharge battery.
  • System Intelligence: Constant Airflow Rate regardless of battery charge and filter loading. Audible and visual alarms signal low airflow and low battery charge.
  • The unique belt design has a solid leather front cut narrow to allow the welder to bend forward easily. Along the welder’s sides the leather becomes wider with large ventilation holes for maximum breathability. The turbo unit securely attaches to and is nestled between the two plastic arms of the belt so the turbo’s weight is evenly distributed across the entire lower back and upper hips. The plastic arms are vertically rigid but with pleats so the welder can move and turn with freedom.
  • Exclusive airflow pattern means perfectly-distributed air throughout the entire breathing zone of the helmet.

3M™ Speedglas™ 9100FX Helmet

Viewing area:
11.76in² / 77.04cm² (2.8 x 4.2in / 72mm x 107mm)

The new 9100XX FX welding helmet combines legendary Speedglas™ quality and auto darkening technology with an innovative wide–view grinding visor to give welders an all-in-one solution for more flexibility, precision, and efficiency. The exceptionally clear, wide grinding visor offers a greater field of view in all directions, while a smooth flip-up pivot mechanism assures effortless transition from welding to grinding modes.

New front air exhaust vents help reduce fogging, and highly adjustable suspension and well-balanced design enhance the well-known Speedglas top performance and comfort qualities.

Speedglas™ 9100FX XX Helmet Features

  • Exceptionally large
  • Smooth flip-up pivot mechanism allows for effortless one-handed use and quick transition between welding and grinding modes.
  • SideWindows with exclusive Shade 5 filters allow you to see others working around you.
  • Front and side air exhaust vents help minimize fogging and enhance comfort particularly during extended use.
  • Includes spark deflector. Also optional flame-resistant extended ear and neck protection accessory is available for added protection from welding hazards.
  • Compatible with all 3M™ Speedglas™ 9100 Auto Darkening Filters (ADF).
  • Compatible with most 3M disposable respirators and select 3M reusable respirators.

Speedglas™ 9100FX XX Auto Dark Lens Features

  • Viewing area 12.11 sq in
  • Magnification made easy. The new magnifying lens holder on the inside face of the welding helmet makes lens installation easier and more adjustable.
  • Seven user selectable dark shades: shade 5 for gas welding/cutting shade 8 for microplasma and low amp TIG welding and shade 9 to 13 for most other types of arc welding.
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds the welding filter switches to the normal light state (shade 3). The comfort mode may help reduce eye fatigue resulting from the eye constantly needing to adjust to differing light levels during tack welding.
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes and amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities
9100 welding shield

3M Speedglas 9100 Series Stand Alone

How to order

Come to our trade counter in Bedminster (map), or phone for advice or check, prices and stock.

Telephone 0117 923 1233
Email Address info@britishwelding.com

9100 welding shield

501805 9100 V Welding Shield

Viewing area:
6.66in² / 41.85cm²
(1.8 x 3.7in / 45mm x 93mm)

The comfort of the Speedglas™ 9100V welding helmet is the result of extensive research and development processes. We consulted with international experts in ergonomics and anatomy to ensure that we would produce the most comfortable and protective welding helmet ever.

Welders are delighted to see all the filter options: A grinding shade 3. Gas welding shade 5. Micro-plasma welding shade 8. Arc welding shades 9 through 13. Sensitivity settings for normal welding to low-amp inverter TIG welding, and even lowsensitivity setting for when other welders are working nearby. More versatility, greater optimization… and more user satisfaction.

Speedglas™ 9100 Helmet Features

  • The helmet is made from a lightweight
  • Heat reflecting silver front.
  • Increased coverage for lower neck from heat and welding sparks.
  • Increased coverage for ear and side of neck.
  • SideWindows: Exclusive patented shade 5 filters that widen your field of vision. SideWindows enable you to be more aware of nearby moving machinery and tools and other peripheral hazards. Welders can also use removable cover plates for when peripheral vision would be distracting.

Speedglas™ 9100V Auto Dark Lens Features

  • Viewing area 6.66 sq in.
  • Magnification made easy. The new magnifying lens holder
  • Seven user selectable dark shades: shade 5 for gas welding/cutting
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds the welding filter switches to the normal light state (shade 3). The comfort mode may help reduce eye fatigue resulting from the eye constantly needing to adjust to differing light levels during tack welding.
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes and amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities or one of the dark shades–to have it function as a passive welding filter.

501815 9100 X Welding Shield

Viewing area:
8.82in² / 57.78cm²
(2.1 x 4.2in / 54mm x 107mm)

The comfort of the Speedglas™ 9100X welding helmet is the result of extensive research and development processes. We consulted with international experts in ergonomics and anatomy to ensure that we would produce the most comfortable and protective welding helmet ever.

Welders are delighted to see all the filter options: A grinding shade 3. Gas welding shade 5. Micro-plasma welding shade 8. Arc welding shades 9 through 13. Sensitivity settings for normal welding to low-amp inverter TIG welding, and even lowsensitivity setting for when other welders are working nearby. More versatility, greater optimization… and more user satisfaction.

Speedglas™ 9100X Helmet Features

  • The helmet is made from a lightweight
  • Heat reflecting silver front.
  • Increased coverage for lower neck from heat and welding sparks.
  • Increased coverage for ear and side of neck.
  • SideWindows: Exclusive patented shade 5 filters that widen your field of vision. SideWindows enable you to be more aware of nearby moving machinery and tools and other peripheral hazards. Welders can also use removable cover plates for when peripheral vision would be distracting.

Speedglas™ 9100X Auto Dark Lens Features

  • Viewing area 9.12 sq in.
  • Magnification made easy. The new magnifying lens holder
  • Seven user selectable dark shades: shade 5 for gas welding/cutting
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds the welding filter switches to the normal light state (shade 3). The comfort mode may help reduce eye fatigue resulting from the eye constantly needing to adjust to differing light levels during tack welding.
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes and amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities or one of the dark shades–to have it function as a passive welding filter.

501825 9100 XX Welding Shield

Viewing area:
11.76in² / 77.04cm² (2.8 x 4.2in / 72mm x 107mm)

The comfort of the Speedglas™ 9100XX welding helmet is the result of extensive research and development processes. We consulted with international experts in ergonomics and anatomy to ensure that we would produce the most comfortable and protective welding helmet ever.

Welders are delighted to see all the filter options: A grinding shade 3. Gas welding shade 5. Micro-plasma welding shade 8. Arc welding shades 9 through 13. Sensitivity settings for normal welding to low-amp inverter TIG welding, and even lowsensitivity setting for when other welders are working nearby. More versatility, greater optimization… and more user satisfaction.

Speedglas™ 9100XX Helmet Features

  • The helmet is made from a lightweight
  • Heat reflecting silver front.
  • Increased coverage for lower neck from heat and welding sparks.
  • Increased coverage for ear and side of neck.
  • SideWindows: Exclusive patented shade 5 filters that widen your field of vision. SideWindows enable you to be more aware of nearby moving machinery and tools and other peripheral hazards. Welders can also use removable cover plates for when peripheral vision would be distracting.

Speedglas™ 9100XX Auto Dark Lens Features

  • Viewing area 12.11 sq in
  • Magnification made easy. The new magnifying lens holder
  • Seven user selectable dark shades: shade 5 for gas welding/cutting
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds the welding filter switches to the normal light state (shade 3). The comfort mode may help reduce eye fatigue resulting from the eye constantly needing to adjust to differing light levels during tack welding.
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes and amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities or one of the dark shades–to have it function as a passive welding filter.
9100 welding shield

3M Speedglas 9100FX Series Stand Alone

How to order

Come to our trade counter in Bedminster (map), or phone for advice or check, prices and stock.

Telephone 0117 923 1233
Email Address info@britishwelding.com

9100 welding shield

541805 9100FX V Welding Shield

Viewing area:
6.66in² / 41.85cm²
(1.8 x 3.7in / 45mm x 93mm)

The new 9100 FX welding helmet with 9100V auto-darkening lens combines legendary Speedglas™ quality and auto darkening technology with an innovative wide-view grinding visor to give welders an all-in-one solution for more flexibilty, precision, and efficiency. The exceptionally clear, wide grinding visor offers a greater field of view in all directions, while a smooth flip-up pivot mechanism assures effortless transition from welding to grinding modes.

New front air exhaust vents help reduce fogging, and highly adjustable suspension and well-balanced design enhance the well-known Speedglas top performance and comfort qualities.

Speedglas™ 9100V FX Helmet Features

  • Exceptionally large 8" x 4.25" protective visor with 105 degree of viewing angle significantly increases user’s field of view in all directions.
  • Smooth flip-up pivot mechanism allows for effortless one-handed use and quick transition between welding and grinding modes.
  • SideWindows with exclusive Shade 5 filters allow you to see others working around you.
  • Front and side air exhaust vents help minimize fogging and enhance comfort particularly during extended use.
  • Includes spark deflector. Also optional flame-resistant extended ear and neck protection accessory is available for added protection from welding hazards.
  • Compatible with all 3M™ Speedglas™ 9100 Auto Darkening Filters (ADF).
  • Compatible with most 3M disposable respirators and select 3M reusable respirators.

Speedglas™ 9100V FX Auto Dark Lens Features

  • Viewing area 6.05 sq in.
  • Magnification made easy. The new magnifying lens holder
  • Seven user selectable dark shades: shade 5 for gas welding/cutting
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes and amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities or one of the dark shades–to have it function as a passive welding filter.

541815 9100FX X Welding Shield

Viewing area:
8.82in² / 57.78cm²
(2.1 x 4.2in / 54mm x 107mm)

The new 9100X FX welding helmet with 9100X auto-darkening lens combines legendary Speedglas™ quality and auto darkening technology with an innovative wide-view grinding visor to give welders an all-in-one solution for more flexibilty, precision, and efficiency. The exceptionally clear, wide grinding visor offers a greater field of view in all directions, while a smooth flip-up pivot mechanism assures effortless transition from welding to grinding modes.

New front air exhaust vents help reduce fogging, and highly adjustable suspension and well-balanced design enhance the well-known Speedglas top performance and comfort qualities.

Speedglas™ 9100FX X Helmet Features

  • Exceptionally large 8" x 4.25" protective visor with 105 degree of viewing angle significantly increases user’s field of view in all directions.
  • Smooth flip-up pivot mechanism allows for effortless one-handed use and quick transition between welding and grinding modes.
  • SideWindows with exclusive Shade 5 filters allow you to see others working around you.
  • Front and side air exhaust vents help minimize fogging and enhance comfort
  • Includes spark deflector. Also
  • Compatible with all 3M™ Speedglas™ 9100 Auto Darkening Filters (ADF).
  • Compatible with most 3M disposable respirators and select 3M reusable respirators.

Speedglas™ 9100FX X Auto Dark Lens Features

  • Viewing area 9.12 sq in.
  • Magnification made easy. The new magnifying lens holder on the inside face of the welding helmet makes lens installation easier and more adjustable.
  • Seven user selectable dark shades: shade 5 for gas welding/cutting
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities or one of the dark shades–to have it function as a passive welding filter.

41825 9100FX XX Welding Shield

Viewing area:
11.76in² / 77.04cm² (2.8 x 4.2in / 72mm x 107mm)

The new 9100XX FX welding helmet combines legendary Speedglas™ quality and auto darkening technology with an innovative wide–view grinding visor to give welders an all-in-one solution for more flexibility, precision, and efficiency. The exceptionally clear, wide grinding visor offers a greater field of view in all directions, while a smooth flip-up pivot mechanism assures effortless transition from welding to grinding modes.

New front air exhaust vents help reduce fogging, and highly adjustable suspension and well-balanced design enhance the well-known Speedglas top performance and comfort qualities.

Speedglas™ 9100FX XX Helmet Features

  • Exceptionally large
  • Smooth flip-up pivot mechanism allows for effortless one-handed use and quick transition between welding and grinding modes.
  • SideWindows with exclusive Shade 5 filters allow you to see others working around you.
  • Front and side air exhaust vents help minimize fogging and enhance comfort particularly during extended use.
  • Includes spark deflector. Also optional flame-resistant extended ear and neck protection accessory is available for added protection from welding hazards.
  • Compatible with all 3M™ Speedglas™ 9100 Auto Darkening Filters (ADF).
  • Compatible with most 3M disposable respirators and select 3M reusable respirators.

Speedglas™ 9100FX XX Auto Dark Lens Features

  • Viewing area 12.11 sq in
  • Magnification made easy. The new magnifying lens holder on the inside face of the welding helmet makes lens installation easier and more adjustable.
  • Seven user selectable dark shades: shade 5 for gas welding/cutting shade 8 for microplasma and low amp TIG welding and shade 9 to 13 for most other types of arc welding.
  • The ‘tack welding comfort mode’ uses an intermediate light state (shade 5). If a follow-up arc is not struck within two seconds the welding filter switches to the normal light state (shade 3). The comfort mode may help reduce eye fatigue resulting from the eye constantly needing to adjust to differing light levels during tack welding.
  • The delay function allows the user to set the dark-to-light switching time.
  • Sensitivity of arc detection can be adjusted to provide reliable switching for a wide range of arc welding processes and amperages and situations. And you now can ‘lock-in’ any shade: the light shade for grinding or other non-welding activities
Back to top link
