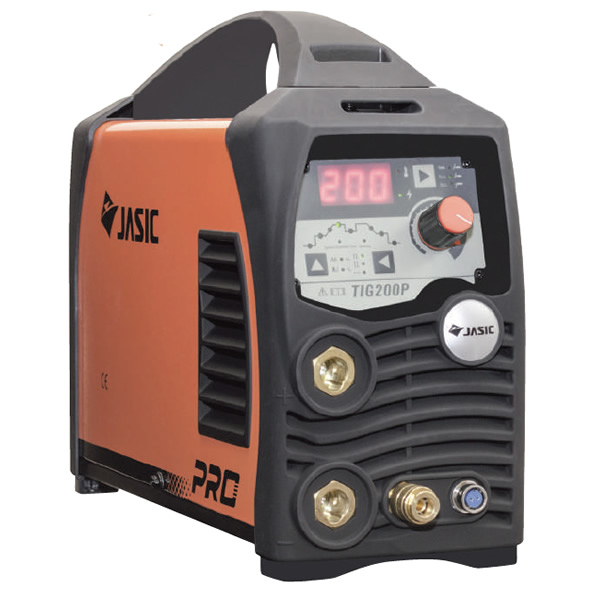

TIG 200 Pulse Dual Voltage

JASIC TIG 200 Pulse Dual Voltage

Order Code: JT-200PDV

Britweld Price: £581.00 +VAT
List Price: £830.00

JASIC Welding TIG 200 Pulse Dual Voltage in Bristol
TIG 200 Pulse Dual Voltage

High quality tactile rubber finish to mouldings & handle

JASIC TIG 200 Pulse Dual Voltage

Includes: TIG torch & adaptor, gas regulator, work return lead & clamp

<< Back

Key Features

  • IGBT Inverter technology - for the professional user
  • DC Pulse TIG/MMA
  • Digital control, HF arc ignition, 2T/4T
  • Down slope & post flow
  • High frequency inverter, high efficiency
  • Compact size, lightweight and modern design
  • Easy start, stable and reliable arc
  • Auto-compensation for voltage fluctuation
  • Advanced single PCB construction
  • Generator friendly

Tech Data

Input Voltage AC 230V - 50/60Hz  AC 115V - 50/60 Hz
Input Power (kVA) MMA 8.2 TIG 6
Current Range (A) MMA 10 - 180
TIG 10 -200
 MMA 10-100
TIG 10-130
Duty Cycle @ 40°C 200A @ 35% 130A @ 35%
No-Load Voltage (V) MMA 60 TIG 65
Efficiency (%)  85
Pulse Frequency (Hz) 0.5 -200
Power Factor  0.7
Protection/Insulation Class  IP21S/F
Recommended Transformer Size (kVA)  10
Dimensions (mm)  365 x 135 x 277
Weight (Kg)  6.12
