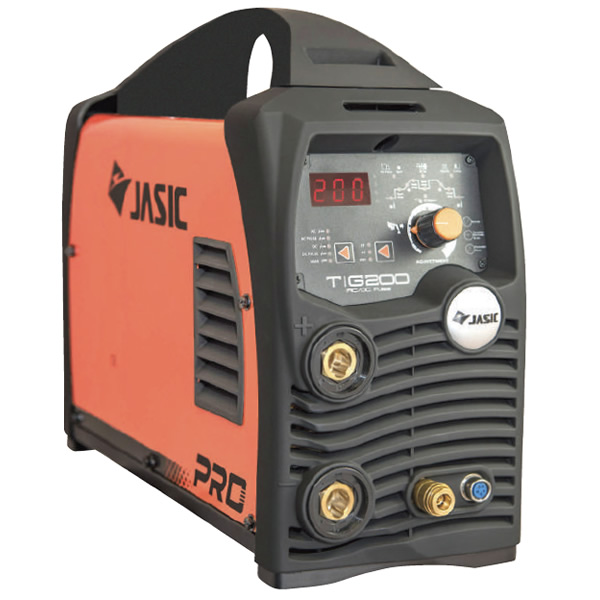

TIG 200P AC/DC Mini Digital

JASIC TIG 200P AC/DC Mini Digital

Order Code: JT-200DS

Britweld Price: £1071.00 +VAT
List Price: £1530.00

JASIC Welding TIG 200P AC/DC Mini Digital in Bristol
TIG 200P AC/DC Mini Digital

High quality tactile rubber finish to mouldings & handle

JASIC TIG 200P AC/DC Mini Digital

Includes: TIG torch & adaptor, gas regulator, work return lead & clamp

How to order

Come to our trade counter in Bedminster (map), or phone for advice or check, prices and stock.

Telephone 0117 923 1233
Email Address info@britishwelding.com

Need a Demo?

Please call to arrange a demonstration at your place of work or at our premises in Bedminster (map).

<< Back

Key Features

  • Unique air channel design to give high performance and protection of the electronics
  • Microprocessor control for efficient control of welding parameters
  • Auto protection circuits to prolong the life of the equipment
  • Advanced arc ignition system
  • High frequency AC for narrow controlled arc and deeper penetration
  • High speed pulse welding for ultimate weld bead control
  • Easy to use intuitive control panel
  • Extensive range of adjustable parameters for precise control
  • Auto save memory function
  • Tungsten selection system
  • Thermally controlled cooling fan
  • Optional remote controls
  • Generator friendly

Tech Data

Input Voltage (Single Phase) AC 230V - 50/60Hz
Recommended Input Fuse (A) 16
Current Range (A) MMA DC 10 - 160 TIG DC 5 - 200
Duty Cycle @ 40°C MMA 160A @ 30% TIG 200A @ 25%
No-Load Voltage (V)  56
Power Factor  0.7
Protection/Insulation Class  IP21S/B
Recommended Transformer Size (kVA)  8
Dimensions (mm)  435 x160 x 340
Weight (Kg)  9
