TIG 315P AC/DC Digital

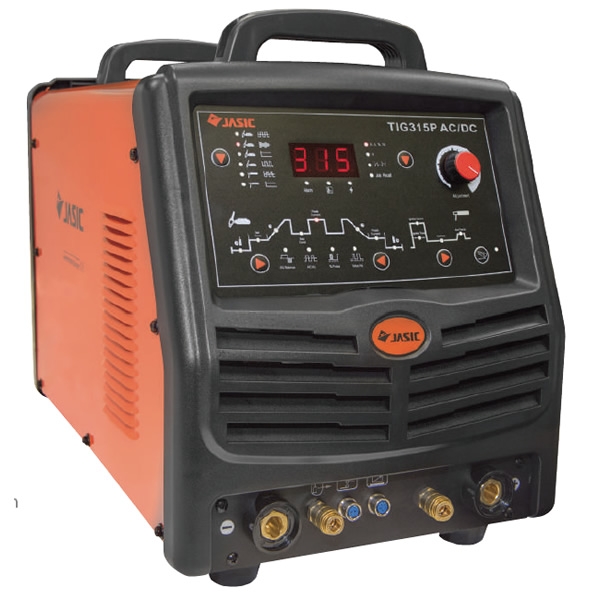

JASIC TIG 315P AC/DC Digital

Order Code: JT-315D

Britweld Price: £1449.00 +VAT
List Price: £2070.00

JASIC Welding TIG 315P AC/DC Digital in Bristol
TIG 315P AC/DC Digital

JASIC TIG 315P AC/DC Digital

Includes: TIG torch & adaptor, gas regulator, work return lead & clamp

<< Back

Key Features

  • TIG Pulse AC/DC with digital control
  • Digital display
  • Program memory storage
  • Easy to use, intuitive control panel
  • Pre-post flow time, up/down slope
  • Pulse adjustment
  • Pulse frequency, pulse duty, arc force, clean width
  • Remote control interface
  • AC function for aluminium and aluminium alloys
  • DC TIG function for carbon steel,stainless, copper and non-ferrous metals
  • Smooth arc and stable welding performance
  • Water connection for optional torch cooling

Tech Data

Input Voltage (Single Phase) AC 400V - 50/60Hz
Rated Input Current (A) 19
Current Range (A) MMA DC 10 - 250
TIG DC 10-350
 MMA AC 20 - 250
TIG AC 30 - 320
Duty Cycle @ 40°C MMA 250A @ 40% TIG 315A @ 20%
No-Load Voltage (V)  50
Power Factor  0.93
Protection/Insulation Class  IP21S/B
Recommended Transformer Size (kVA)  10
Dimensions (mm)  590 x375 x 380
Weight (Kg)  33
