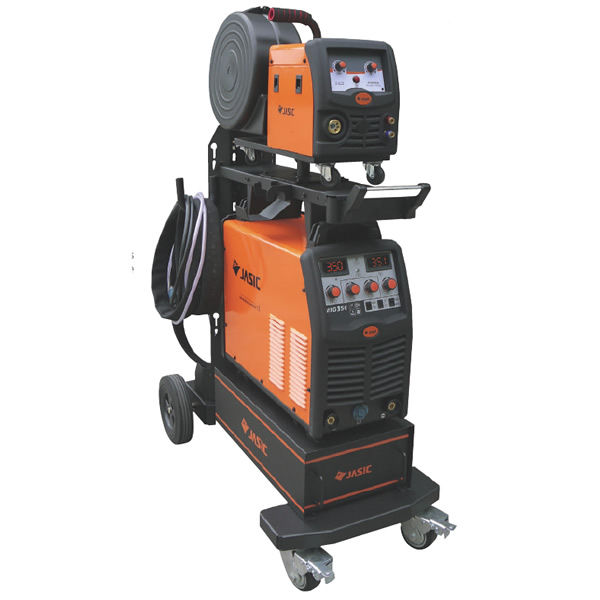

Order Code: JM-352S
Accomodates full size gas cylinder
Includes: MIG torch, trolley, interconnecting cable, gas regulator, work return lead & clamp
Optional: Storage Box - air cooled model only.
Replaced when fitted with optional water cooling unit JWC-01
| Input Voltage | AC 400V - 50/60 Hz | ||
| Recommended Input Fuse (A) | 60 | ||
| mig voltage Range (V) | 15-36 | ||
| Current Range (A) | 50 - 350 | ||
| No-Load Voltage (V) | 65 | ||
| Duty Cycle @ 40°C | 270A @30% | 270A @30% | |
| Wire Speed | 0-16 mm/min | ||
| Wire Spool Size | θ 300mm | ||
| MMA Range (A) | 20 - 350 | ||
| Power Factor | 0.93 | ||
| Protection/Insulation Class | IP21S | ||
| Recommended Generator Size (kVA) | 15 | ||
| Dimensions (mm) | 760 x 365 x 585 | ||
| Weight (Kg) | 49 |
